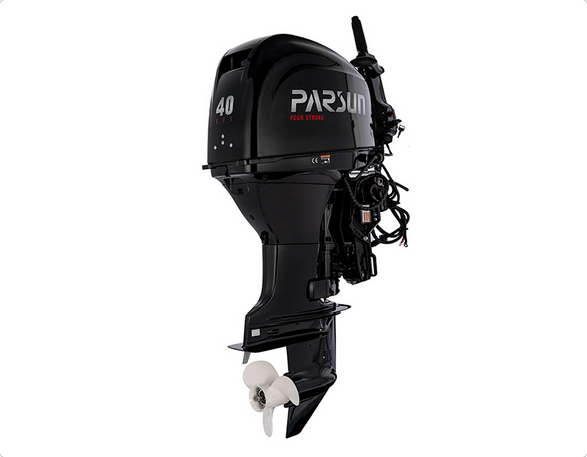

F40 EFI Outboard Motor
F40 EFI Outboard Motor
The F40 is an entry-level middle horsepower 4-stroke 40hp outboard motor. It adopts the latest ECU-controlled EFI technology and has made great strides in overall performance. Whether used for personal recreation, commercial use, or fishing, the F40 outboard motor can provide users with a exhilarating power experience.
1. Equipped with a reliable Delphi E.F.I. system and multifunction diagnostic scanner (scanner available as option), the outboard motor ensures high quality, long life and easily maintenance, while reducing your fuel and maintenance costs.
2. Through propeller hub exhaust and long shaft provides a smooth quiet operation.
3. Long-term durability of critical engine components: water cooling fuel system, stainless steel water pump housing liner and camshaft-driven engine oil pump ensure the outstanding durability.
4.Large displacement and single overhead cam increase the low-end power with smooth and strong performance, and help the operator get excellent acceleration even when pushing a heavy load.
● Fuel-water separator and fuel filter prevent any debris or water in the fuel from getting into the engine.
● Built-in freshwater flushing system provides easy routine flushing.
● High output 18 amp alternator for battery charging and fishing electronics.
● Multi point electronic fuel injection with ECM control delivers the precise fuel / air mixture for optimum combustion and provides smooth running.
● Warning & protection: Several different sensors continually monitor the critical engine's major functions. They will send out special signals to inform you in advance, such as over-revving, overheating, start-in-gear protection for safe engine starting, safety lanyard or low oil pressure, and automatically reduce the engine power to prevent damage.
Specs:
Model | F40 |
Specs Options | F40BES-D/F40BEL-D/F40BES-T/F40BEL-T/F40FES-T/F40FEL-T |
Max.Power | 40HP(29.4KW) |
Transom Height | 15/20in. |
Dry Weight | 99.9-103kg |
Full Rpm Range | 5000～6000r/min |
Idling Rpm Range | 850-950r/min |
Engine Type | 3-cyl. SOHC |
Fuel Induction Sysem | EFI |
Displacement | 747cc |
Bore * Stroke | 65.0×75.0mm |
Ignition System | CDI |
Steering System | Tiller/remote |
Starting System | Manual start/Electric start |
Gear Shift | F-N-R |
Gear Ratio | 2.0 |
Trim And Tilt | Gas assist(-D)/Electric(-T) |
Fuel Tank Capacity | 24L |
Max. Fuel Consumption | 13.8L/h |
Engine Oil Capacity | 1.7L |
Gear Oil Capacity | 430cc |
Propeller Options | 3-12"/13" |
Specs description:
The "F" of "F40" means "4-stroke".
The letters after F40 means:
B=Back control(tiller) M=Manual start F=Front control ( remote control ) S=Short shaft L=Long shaft -D=Power tilt & trim -T=Electric tilt & trim
