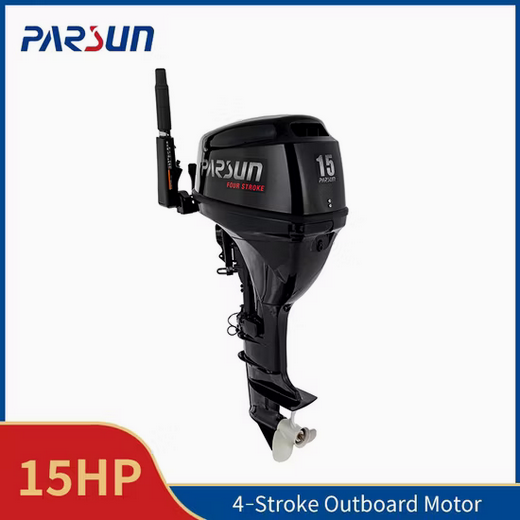

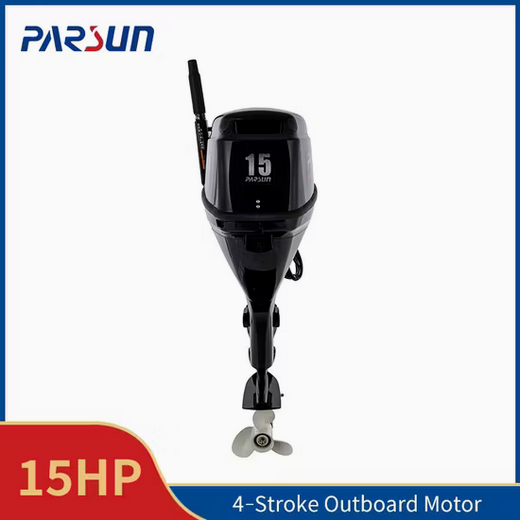

F15E Outboard Motor
F15E Outboard Motor
F15E is an electric start 15hp 4-stroke portable outboard motor with great market feedback. F15 is applicable to a larger range of personal recreation, firefighting, disaster relief, commercial, etc. Although it's a small outboard motor, but it is powerful enough to take few people around.
Portable & Environment-friendly & Powerful & Efficient
1. Less emission, CE and EPA approved.
2. External large capacity fuel tank, support longer sailing time.
3. Overall length is within 1 meter, small enough to transport and pack.
4. Engine upgrade, greater load capacity, faster sailing speed, better power experience.
5. F9.9 has good acceleration performance and fuel economy through engine optimization measures.
6. Electric starting, eliminating the tedium of pulling.
Model | F15 |
Specs Option | F15BMS/F15BML/F15BWS/F15BWL/F15FWS/F15FWL |
Transom Height | 15/ 20in. |
Weight | 49-53Kg |
Full Rpm Range | 4500～5500r/min |
Max. Output Power | 11kW（15HP）@5000r/min |
Idling Rpm Range | 900～1000 r/min |
Engine Type | L2, SOHC |
Displacement | 323 cc |
Bore * Stroke | 59.0×59.0 mm |
Ignition System | CDI |
Fuel Induction System | Carburetor |
Steering System | Tiller/Remote control |
Starting System | Manual |
Gear Shift | Forward-Neutral-Reverse |
Gear Ratio | 2.08 |
Trim & Tilt System | Manual |
Fuel Tank Capacity | 24L |
Max. Fuel Consumption | 5.3L/h |
Engine Oil Capacity | 1.0L |
Gear Oil Capacity | 250cc |
Propeller Options | 3-8"or 3-10"or 3-11" or 3-12" |
Model description:
B=Back control (tiller handle) F= front control (remote control) M= Manual start, W= Manual start and Electric start as option, S= Short shaft, L= long shaft
The propeller shall be selected according to the size and application of the boat.
